Incorporating plenty of unique mechanism, we thoroughly pursue functionality and operability as a kick pedal. Both lightness and durability,

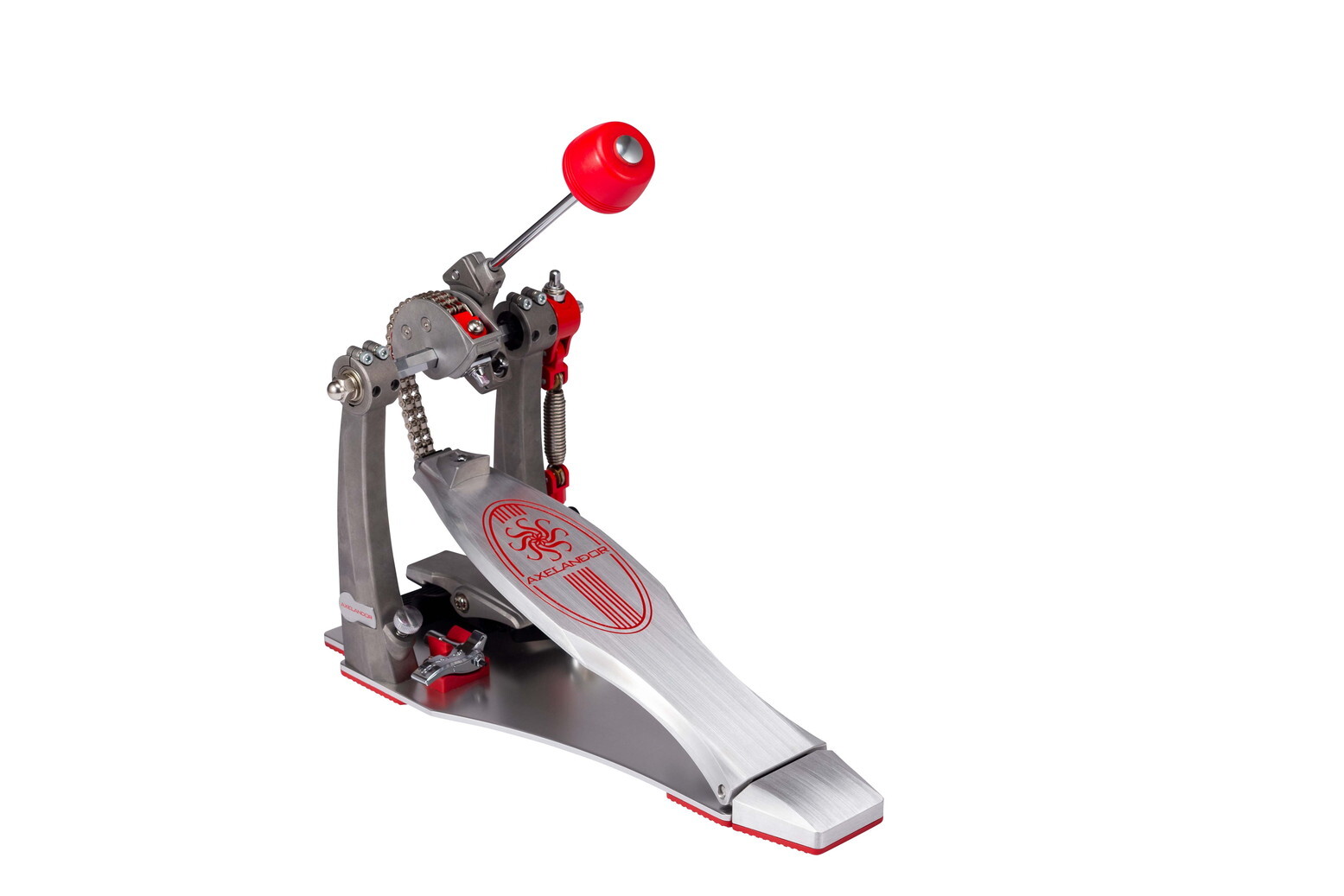

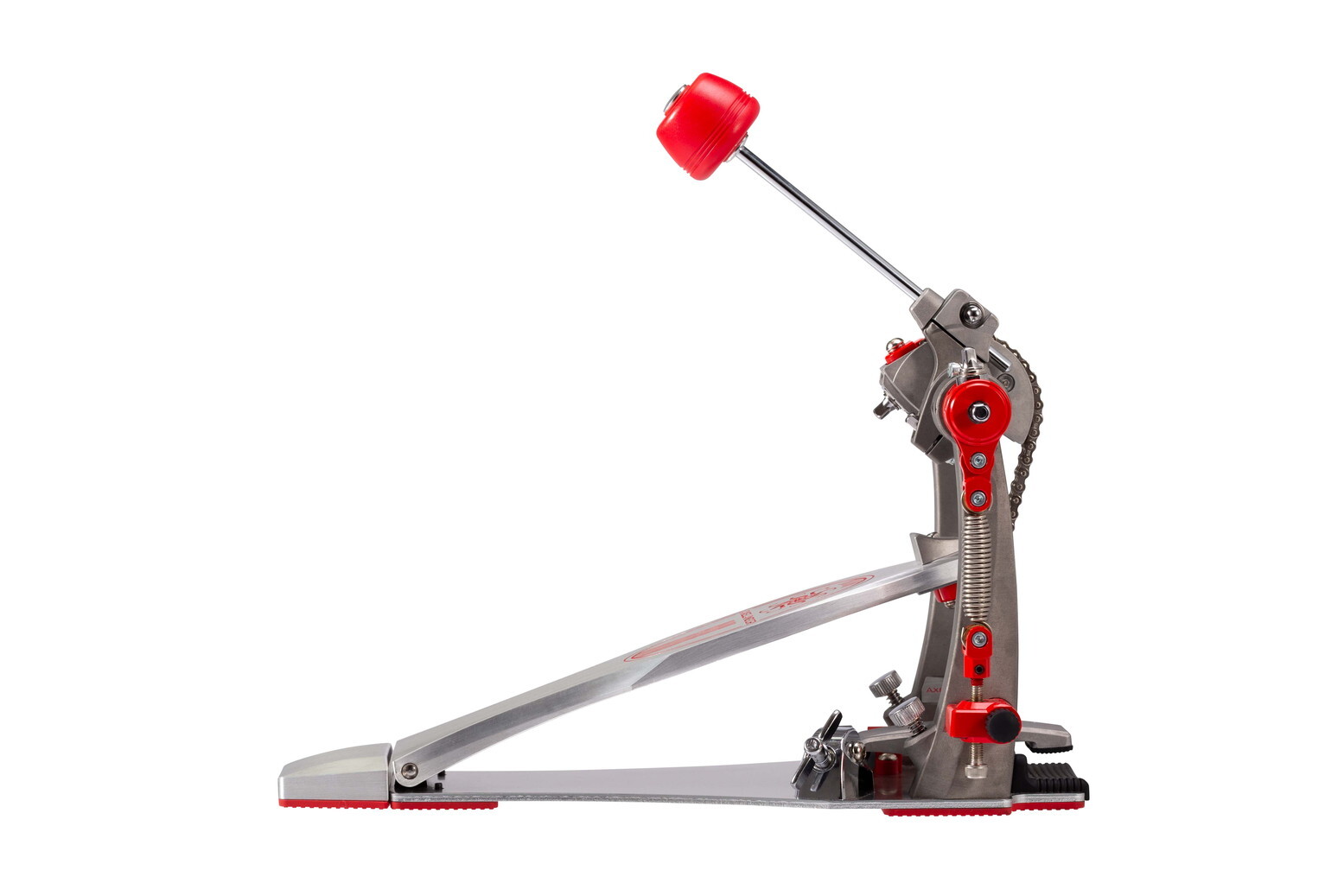

Introducing Axelandor, an aluminum footboard kick pedal with extreme speed!
Type: Single pedal
Drive system: Double chain
Beater shaft diameter: 1/4'' (Φ6.35mm)
Beater angle: 45° center / ±22.5°
Cam: Moving eccentric type 3-step adjustment Footboard
accessory : Carry back, trad accelerator beater (with memory stopper), felt beater head, knob cap, integrated drum key
EQUIPPED WITH A
UNIQUE MULTI-ACCELERATOR CAM SYSTEM THAT CAN BE EASILY ADJUSTED .
Adopts a multi-accelerator cam system that can adjust from eccentricity to true circle in three steps by adjusting the eccentricity by moving the sprocket cam. You can get different drive feeling, and you can control from powerful and stable play style to fine nuances. What's more, you can easily change the key bolt for adjustment without removing the cam and changing the footboard angle.
DUAL TENSION BEARINGS
REALIZE NATURAL ACTION.

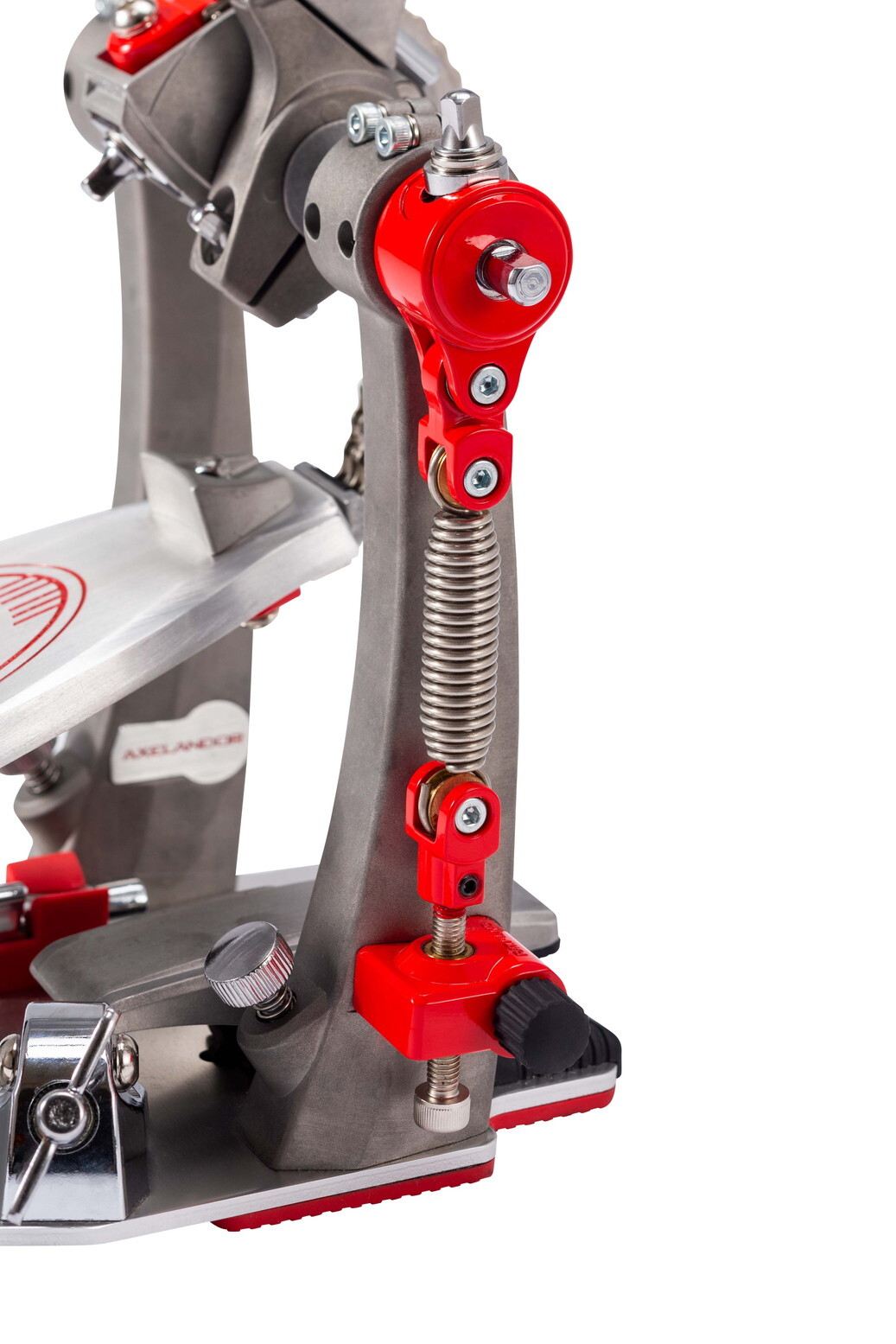

Equipped with V-groove bearings on both ends of the tension spring. This eliminates friction and noise at the ends of the springs, which results in a smoother transmission with no transmission loss due to friction or load resistance, and at the same time extends the life of the hooks on both ends of the spring.
TENSION SPRING MECHANISM THAT CAN BE ADJUSTED WITH ONE ACTION.
Adopted a unique mechanism that can be easily adjusted with the included drum key or knob cap. Tension can be strengthened or weakened just by turning the key bolt, and smooth fine adjustment is possible. It does not require a lock nut to prevent loosening, and by using a drum key, it is a mechanism that can be easily adjusted to your desired tension with less force without damaging your fingertips.
The heel part is removable, allowing you to adjust the footboard from short to long. Heel up and heel down playing methods are also perfect.
The aluminum footboard, which pursues lightness, enables smooth and powerful high-speed performance. Good footwork and easy to carry.

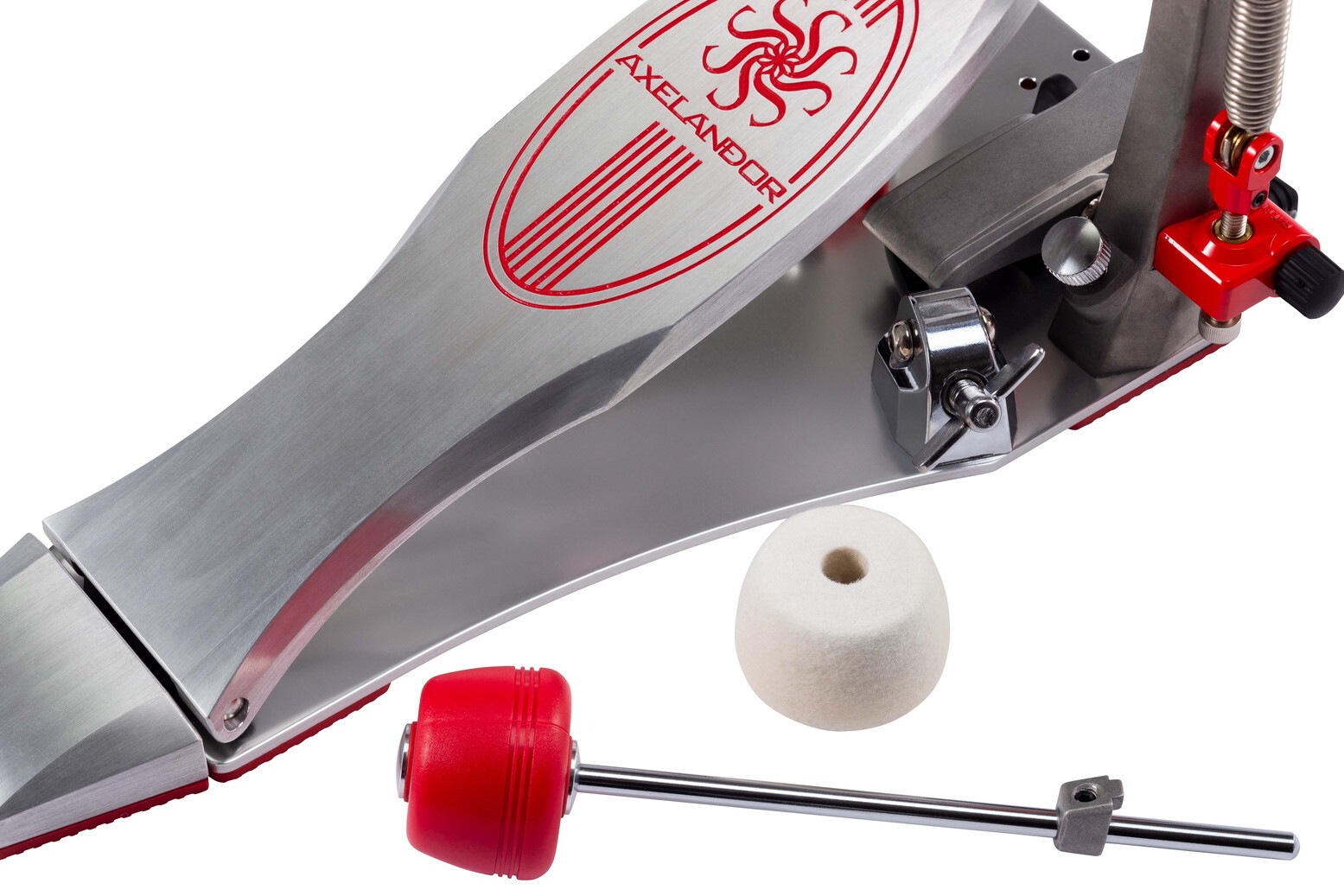

TWO KINDS OF BEATERS ARE AVAILABLE.
In addition to the highly durable resin head that is standard equipment, a felt head is also included. Both are traditional types of round head beaters that emphasize weight and sound balance.
